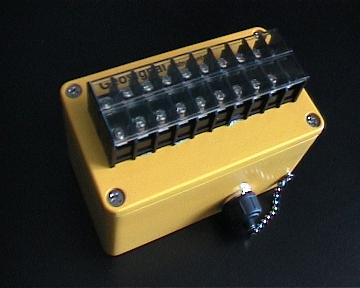

Up to 64 Inputs F880-64

  Total electrical insulation
  Differential inputs
  Large Memory 1 Mbit
  Fully stand alone
  Permanent battery (10 Y.rs)
  Weatherproof IP65 case
  Run your own software
  Sampling can also be trigged by an external switch or event
  Software for Windows, programmable by Linux, Palm™ & other OS
  USB / RS232 download

• The datalogger F880 has been designed for monitoring of pipelines or other large structures subject to strong surges.
• Monitoring of sensors placed in deep wells.
• Environmental monitoring plants like landslide monitoring plants.
• Differential monitoring of sensors or sources having large voltage differences from one to the other.
• Acquisition in remote areas.
• Acquisition where a combination of large memory and low power is required.
• Acquisition situations requiring flexibility and control of external devices or sensors by the datalogger.
• The datalogger can be employed outdoor and indoor.
• The 10-bit resolution guarantees a resolution 4 times higher than 8-bit products commercialised by competition, making the use of F880 ideal for detailed acquisition.

• The difference between F880 and other dataloggers is simple:
• Total electrical insulation between the sensors and the datalogger core.
• Total electrical insulation between the channels.
• Channels do not share a common ground and can even measure 150V one to the other.
• Inputs protected by gas discharger preventing sparks to jump across electrical insulation.

• USB / RS232 cables for PC connection.
• Palm crossed adapter.
  Accessories are sold separately

• Operating temperature: -40°C + 85°C
• Protection index: IP65
• Analog channels : 8/16/32/64 with screw connector.
• Analog input ranges: 0-2.56V, 0-5V, 0-10V, ±1.28V, ±2.56V, ±5V, ±10V.
• AD converter: 10 bit (0.0025V resolution)
• Antialiasing filter: for acquisition of "dirty" signals.
• Digital filter: excludable for fast data acquisition.
• Digital inputs: 1 counter (65535 counts per measure with debouncer to prevent false counts)
• Trigger input: sampling can be trigged by an external event or signal.
• Relay output: 200 mA to switch external equipment on at sampling time.
• Sampling interval: programmable from 1/32 to 16777216 seconds.
• Internal date and time clock in DOS/UNIX format.
• Power supply: 3 ( lithium 3.6V) or 4 (3x1.5V AAA).
• Sensors can be powered on by the datalogger.
• Serial port for PC downloading: (buffered cable is required).
• 254 lines of customisable procedure including some programming.
• Memory: 1Mbit of Static RAM plus 7200 samples in Flash memory.
• 12 internal registers for storing further data.
• Software with multiple station management.
• More than 50 powerful commands including memory unerase.
