Very Large Memory Fully stand alone Stainless steel case Autoranging inputs Instr. amplifiers on board Log RS232 or pulses Log thermocouple/PT100 Use as oscilloscope Display & graphics Relay & TTL outputs Run your C/BASIC code Operative system like a small PC.
The datalogger SM1200 has been designed in order to
be connected to the most range possible of sensors or signal sources.
Acquisition where a combination of large memory and
low power is required.
Acquisition situations requiring total flexibility
and control of external devices or sensors by the datalogger.
Acquisitions requiring high speed sampling rate.
Can be used as portable oscilloscope with memory.
The 4-1/2 digit resolution makes standard 12 bit
products obsolete.
What’s New with
Geosignal SM1200

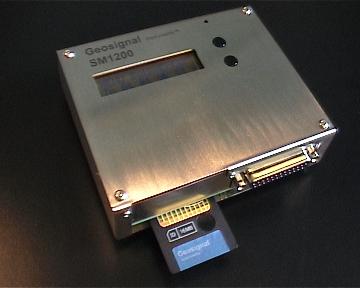

SM1200 is a small portable computer/datalogger
storing data on SmartMedia ™ memory cards. It is equipped with high resolution
analog/digital converter, precision current source, instrumentation amplifiers, cold
junction compensation for thermocouples, configurable multiplexer, RS232 port and digital
inputs and outputs.
SM1200 allows you to load special acquisition programs written in Basic, C or assembler.
The instrument is equipped with a display that can visualise the input like a voltmeter or
fast changing signals like an oscilloscope.
Very Large Memory
