SmartMedia ™ Memory Card

  Very Large Memory
  Fully stand alone
  Stainless steel case
  Autoranging input
  Log RS232 or pulses
  Log voltage, 4-20 mA
  Log temperature
  Display & graphics
  Relay & TTL outputs
  Run your C/BASIC code
  Operating system like a small PC.

Click here for New model MK400

• The datalogger SM400 has been designed in order to provide high speed logging from voltage sources and sensors.
• Acquisition where a combination of large memory and low power is required.
• Acquisition situations requiring total flexibility and control of external devices or sensors by the datalogger.
• Acquisitions requiring high speed sampling rate.
• Can be used as portable oscilloscope with memory.
• SM400 can be also used in conjunction with a display

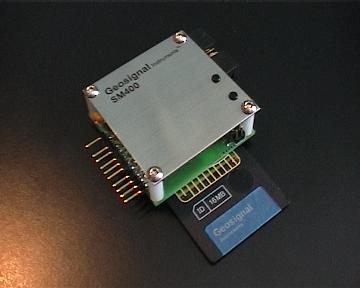

• SM400 is a small portable computer/datalogger storing data on SmartMedia ™ memory cards. It is equipped a fast 10 bit ADC, RS232 port , analog/digital inputs and outputs.
  SM400 allows you to load special acquisition programs written in Basic, C or assembler.
  The instrument can be connected to a display that can visualise the input like a voltmeter.

• SmartMedia ™ Cards.
• Battery packs
• Software for oscilloscope
  Accessories are sold separately

• Stainless steel case
• Analog channels : 4 : auto-ranging; 4-20 mA ; high speed 2.5V, counter
• Digital inputs/outputs: 3 programmable TTL inputs/outputs/counter.
• Trigger input: sampling can be trigged by an external event or signal.
• Sampling interval: programmable from 1/4000 of second to months.
• Preloaded with operating system PICDOS 1.02
• Power supply: 3.6V NiMH rechargeable battery.
• Sensors can be powered by the datalogger.
• RS232 programmable serial port for input and output.
• Memory: SmartMedia ™ Memory Card 16/32/64/128 Mbytes.
